Dialpad + CRM Series

Dialpad’s CRM Series integration matches callers, provides real-time access to contacts and call history through a sidebar, supports notes and manual contact selection, and logs calls when a valid contact is identified and “Save Call Log” is enabled. All setup, configuration, and activation, including credentials, Event Hub, and optional Info Hub settings, must be completed by the Professional Services team through a paid engagement.

Connect Dialpad with CRM Series to automatically log calls and access customer information in real time through a built-in sidebar. This helps your team manage interactions more efficiently by combining automatic matching with manual control.

With the Dialpad + CRM Series integration, you can:

  • Match callers to contacts automatically using phone number

  • Search and select contacts manually using name, email, or phone number

  • Control whether calls are logged using the sidebar

  • View recent call history and add notes without leaving Dialpad

Who can use this

Activation of this integration will require a Professional Services engagement and may incur additional cost. CRM Series is available to all users on all Dialpad Connect and Support license tiers when enabled by your Admin.

Let’s dive in!

CRM Series setup requirements

Before you begin, make sure you have:

  • Dialpad admin account with access to integration settings

  • CRM Series account with an API member created for Dialpad

  • CRM Series API credentials, including:

    • Client ID

    • Client Secret

    • Username

    • Password

Use the CRM Series sidebar

The CRM Series integration includes a sidebar that provides real-time access to customer data during calls.

Match contacts

The sidebar automatically searches CRM Series for contacts matching the caller's phone number.

Single match found

The contact connects automatically, and their details (name, email, phone) display right away.

Multiple matches found

A list of potential matches displays — select the correct one.

No match found

Use the search bar to look up the contact by name, email, or phone.

To change a match, select Rematch and search for a different contact.

View of a contact match in the Info Hub sidebar widget.

Contact Info

Matched contacts are automatically displayed when a single match is found or when a contact is selected manually. To search fort contacts, enter their name, phone number, or email address in the Search field in the Info Hub widget.

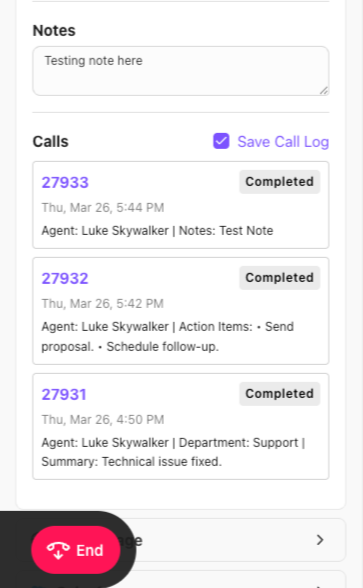

Notes

Agents can add notes related to the contact or the current call. To add a note in CRM Series for a contact, find the Notes section in the Info Hub widget and enter your notes.

View of a contact match in the Info Hub sidebar widget.

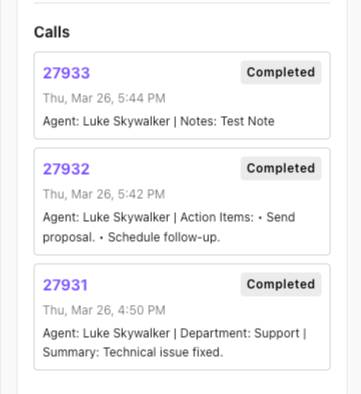

Calls

Recent calls associated with the contact are displayed, allowing agents to control logging behavior.

  • The “Save Call Log” checkbox determines whether the current call will be logged

  • A list of previously logged calls is displayed with key details

View of the Info Hub sidebar widget.

Call logging

Dialpad logs calls to CRM Series only when a valid contact is identified and the agent chooses to save the call.

What gets logged

These details are captured when a call is logged:

Field

Description

User

The CRM user associated with the call log.

Direction

Incoming or outgoing call.

Agent

The name of the agent handling the call.

Start time

Call start timestamp.

End time

Call end timestamp.

Department

Department name if applicable.

Summary

AI-generated call purpose and call details.

Comment

AI-generated recap summary, action items, and notes.

When calls are logged

Calls are logged during these scenarios:

Note

Calls shorter than 15 seconds are not logged. Calls are stored directly in CRM Series under the contact’s call records.

Scenario

What happens

Single match + checkbox enabled

Call is logged

Single match + checkbox disabled

Call is not logged

Multiple or no match + no manual selection

Call is not logged

Manual contact selection + checkbox enabled

Call is logged

Troubleshooting

"CRM Not Connected" error

  • Verify your CRM Series credentials including Base URL, Client ID, Client Secret, Username, and Password

  • Ensure the connection is active and properly configured

Calls not logging

  • Confirm a valid contact match or manual selection

  • Ensure the “Save Call Log” checkbox is enabled

  • Verify the call duration is longer than 15 seconds

  • Confirm Event Hub is connected and active

Frequently asked questions

Why isn’t my contact matching automatically?

Contact matching is based on phone number. If no match is found, agents can search and select a contact manually using the sidebar.

Why isn’t my call being logged?

Call logging depends on two conditions: a valid contact must be identified and the “Save Call Log” option must be enabled. If either condition is not met, the call will not be logged.

Can I choose whether to log a call?

Yes. Agents can control call logging using the “Save Call Log” checkbox in the sidebar during the call.
