Setting up a Yealink T-series Phone

Once you've purchased your Yealink T-series phone, it's time to set it up with Dialpad.

Yealink T-series devices can be set up as a user or room phone.

Before getting started, refer to the phone’s “Quick Setup” guide to ensure the device is powered on and connected to your network.

Let's dive into the details.

Difference between Room and User Phones

Room Phones are perfect for shared company spaces such as conference rooms, reception areas, or phone booths. They are not associated with a user account. User Phones are desktop phones assigned to one of your team members. When their Dialpad number is called, that user's phone will ring.

Set up Yealink T-series phone for a user

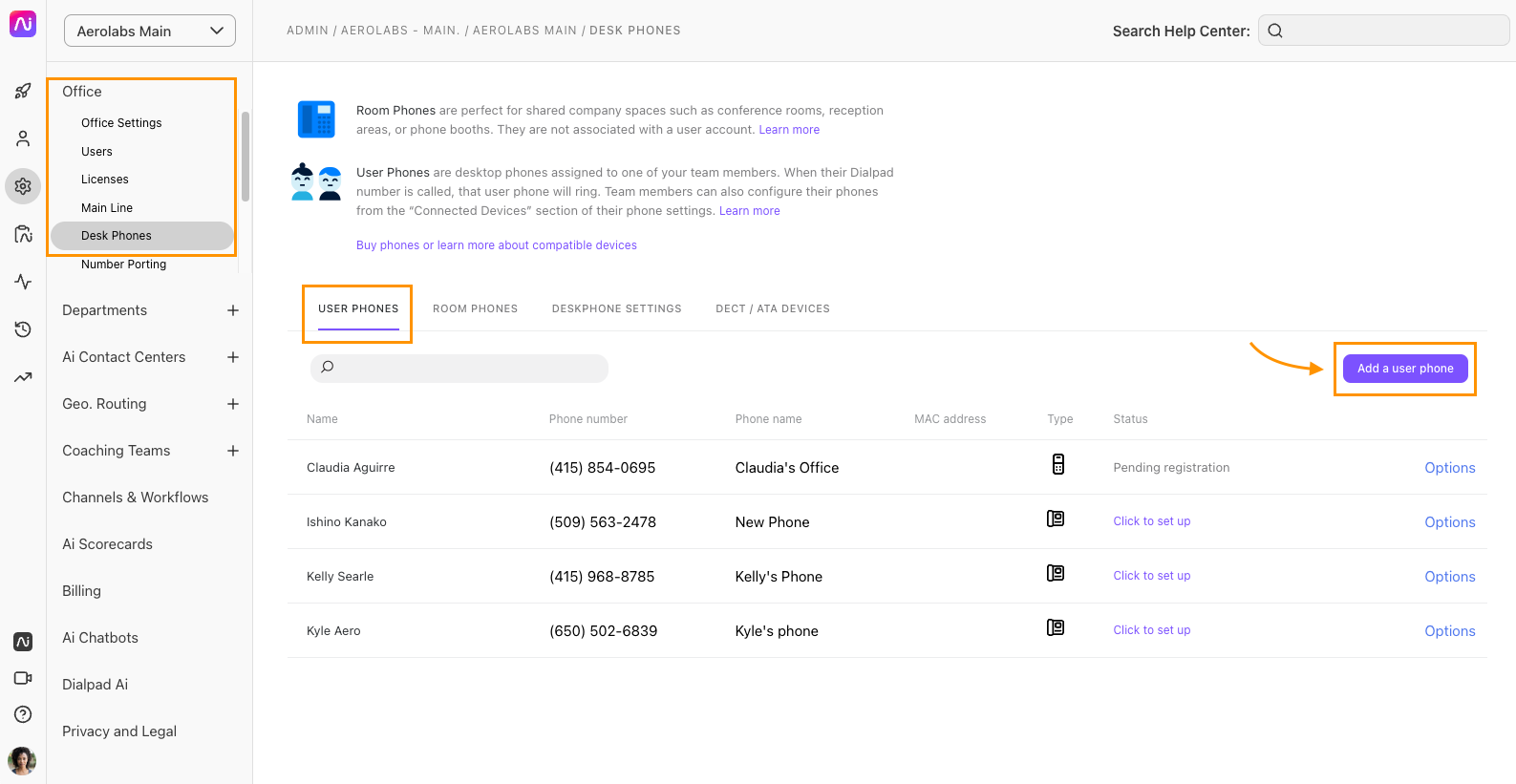

To add a Yealink phone to a user, head to your Dialpad Admin Portal.

1. Navigate to Office

2. Select Desk Phones

3. Select User phones

4. Select Add a user phone

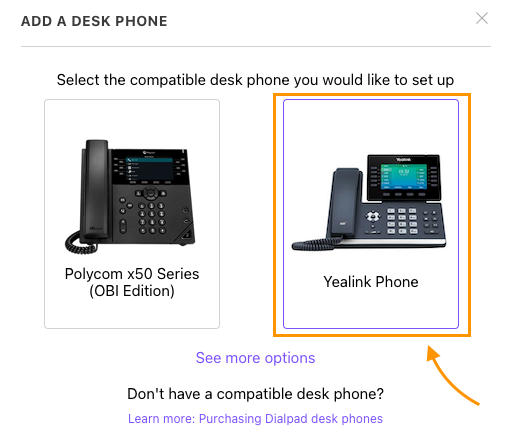

5. Select Yealink Phone


6. Name the desk phone and assign a user

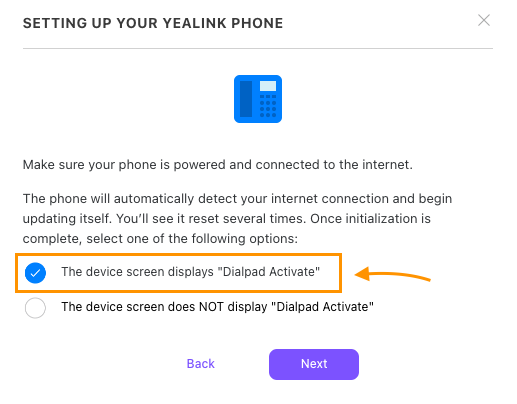

7. Select The device screen displays “Dialpad Activate"


8. Select Next

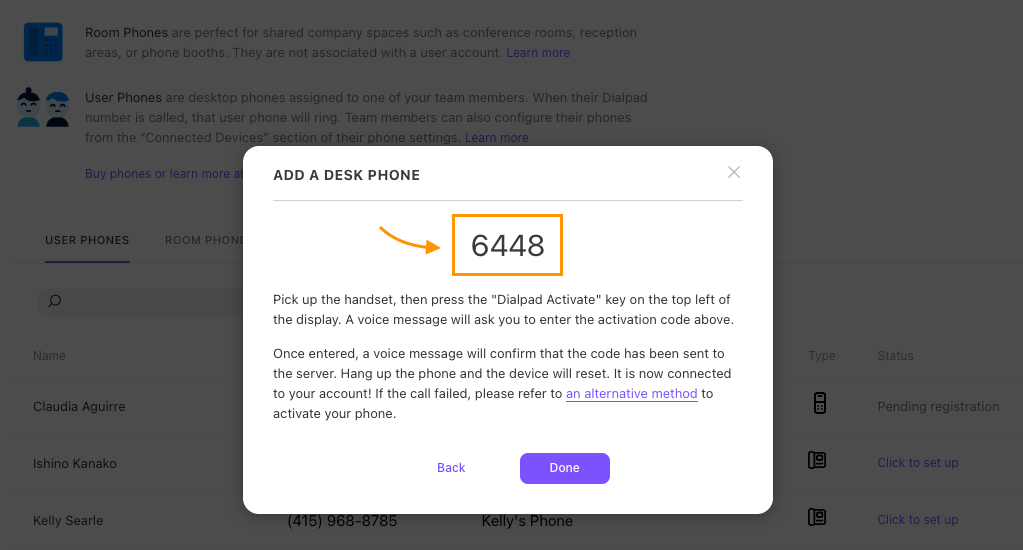

9. Note the activation code

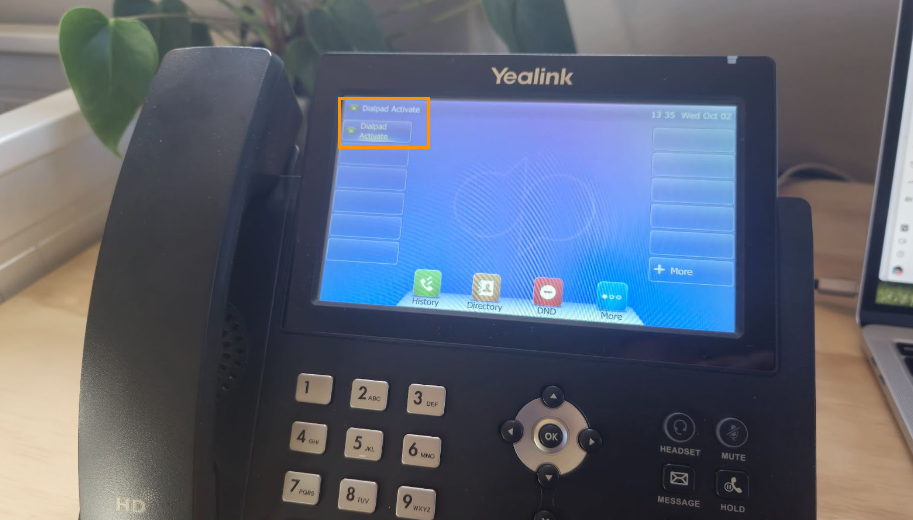

10. Pickup your handset, then press the “Dialpad Activate” line key


11. When prompted, enter the activation code

12. Hang up the phone

13. Select Done

Your phone will reboot, don’t worry if it takes a few minutes.

Note

Team members can also configure their phones from the “Connected Devices” section of their phone settings.

Troubleshooting

If your device does not display “Dialpad Activate,” please contact Dialpad’s Customer Care Team.

Set up Yealink T-series phone for a room

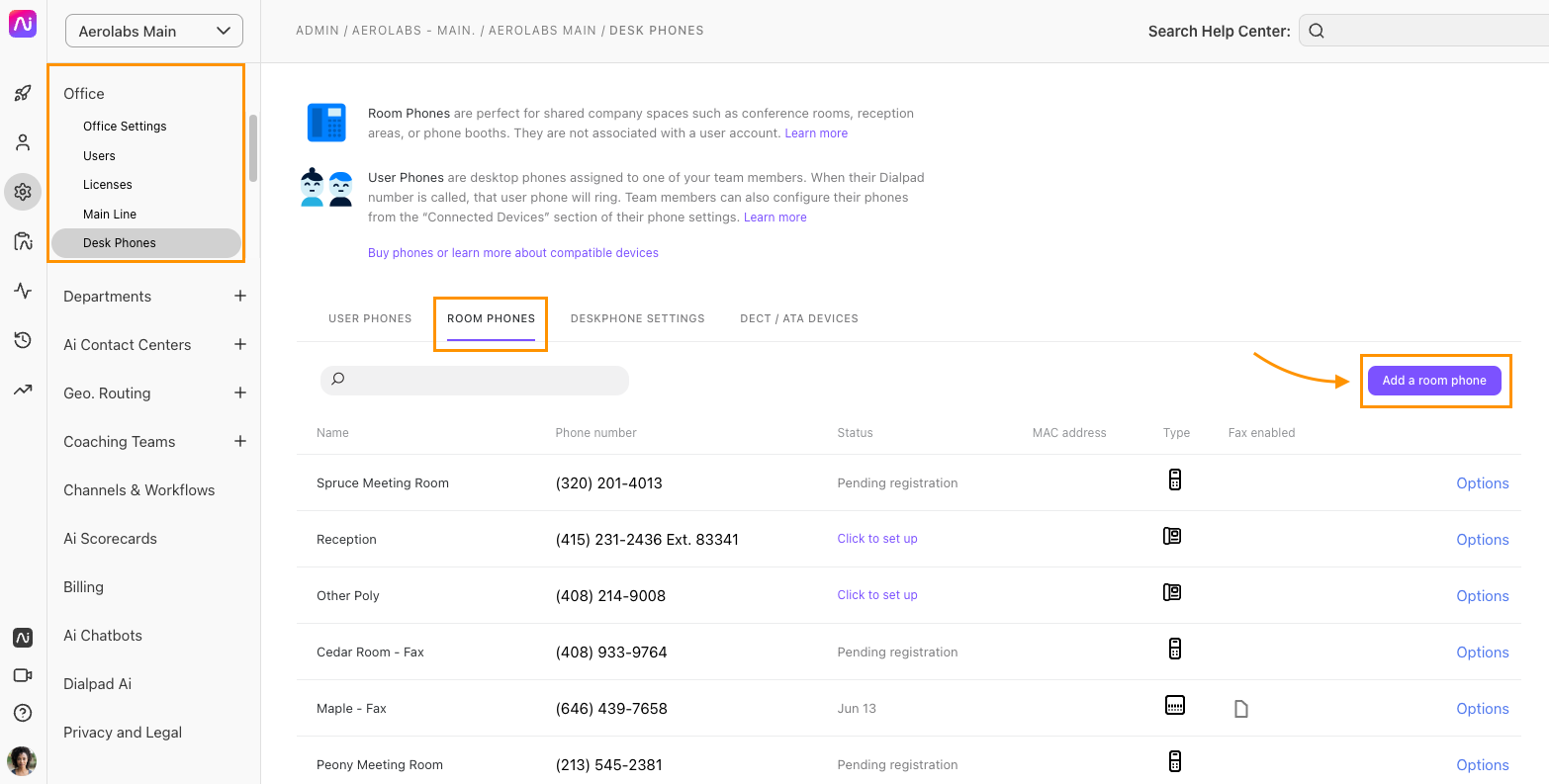

To add a Yealink T-series phone as a room phone, head to your Dialpad Admin Portal.

Reminder

You'll need a Room Phone License to provision this device as a room phone.

1. Navigate to Office

2. Select Desk Phones

3. Select Room Phones

4. Select Add a room phone


5. Select Yealink Phone


6. Name the room phone

   • Use something easy and descriptive, like ‘Lobby’ or ‘Reception’.

7. Select Next

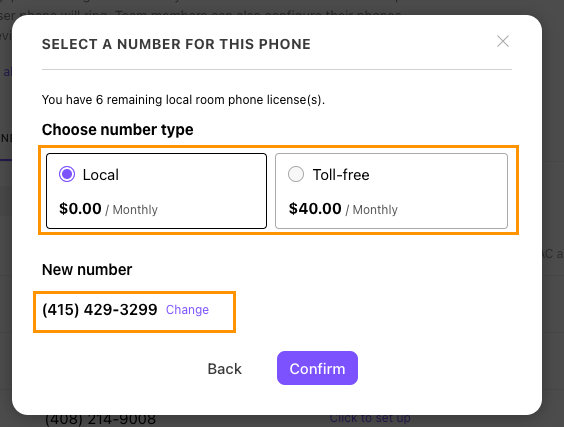

8. Choose the number type

9. Confirm the phone number for the room phone

   • If you want a different number, select Change



10. Select Confirm

11. Select The device screen displays “Dialpad Activate"


12. Select Next

13. Note the activation code


14. Pickup your handset, then press the “Dialpad Activate” line key


    1. When prompted, enter the activation code

    2. Hang up the phone

    3. Select Done

Your phone will reboot, don’t worry if it takes a few minutes.

Troubleshooting

If your device does not display “Dialpad Activate,” please contact Dialpad’s Customer Care Team.

Compatible Yealink T-series phones

The following Yealink T-series phones are compatible with Dialpad.
